Gelatin Melting System

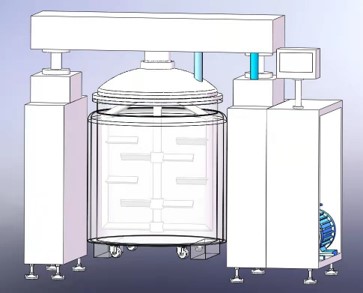

Gelatain Melting Tank(One Pot)
- Tank volume can be customized
- No need transfer gelatin from melting tank to holding tank
- No need aging process. Can use gelatin directly after cooking
- Vacuum and condenser comined type
- Fast and constant heating, stable vacuum
- Product contact parts in SUS 304 or 316L or equibalent material
- Temp guage, vacuum guage,safty valve, Sight glass installed
- Water jacket heating type
- Both Platform type, Leg type are available
| Dimension(mm) | 900 (L) x 1,900 (W) x 1,750(2,450) (H) | |
| Volume | 250L | |
| Weight | 700KGS | |
| Rotate speed | 44RPM | |
| Temperature Control | < 90℃ | |
| Power | 220/380V,50/60Hz | |
| Power Consumption | 12KW | |
| Pressure | ≤0.09Mpa | |
| Material | Contact parts in SUS 316L or equivalent material | |
| Jacket Layer | 3Layer | |
