EQUIPMENT
Gelatin Melting System

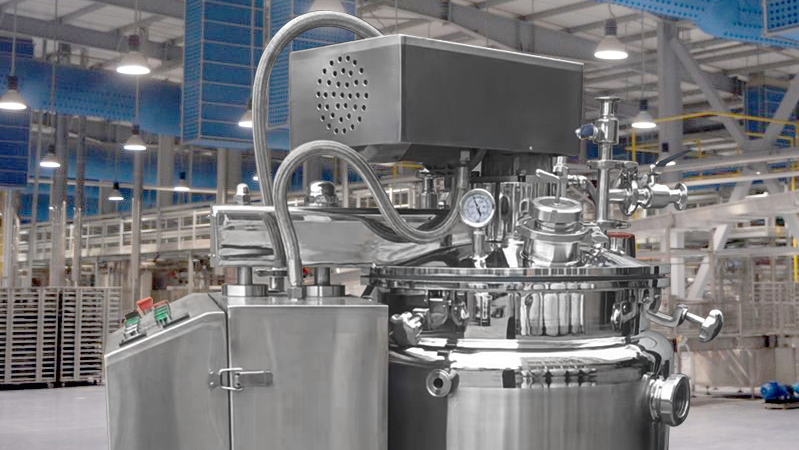

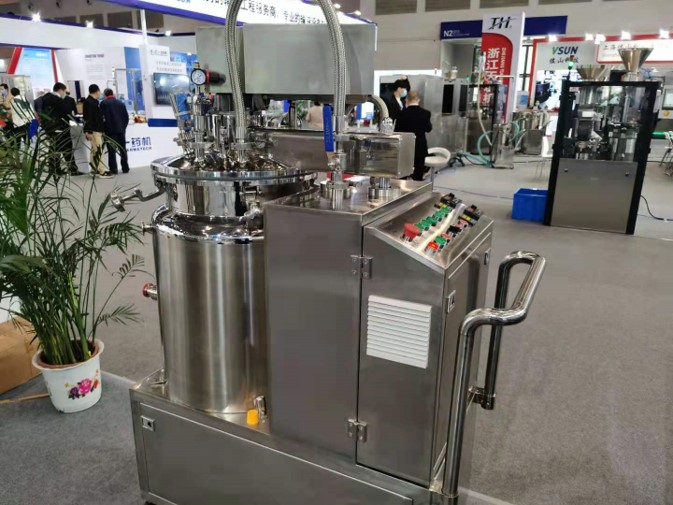

Combine Gelatin Melting Tank
- No need transfer gelatin from melting tank to holding tank
- No need aging process. Can use gelatin directly after cooking
- For R&D and small scale
- Fast and constant heating, stable vacuum
- Product contact parts in SUS 304 or 316L or equibalent material
- Temp guage, vacuum guage,safty valve, Sight glass installed
- Water jacket heating type
| HCGT-100 | HCGT-200 | |
| Volume | 100L | 200L |
| Dimension (mm) | 1200(L) x 700(W) x 1700(H) | 1230(L) x 750(W) x 1770(H) |
| Rotate speed | 47RPM | |
| Temperature Control | < 90℃ | |
| Heating Elements | Jacketed electric heating system | |
| Electricity | 380V,50/60Hz | |
| Power Consumption | 3KW | 4KW |
| Pressure | ≤0.09Mpa | |
| Material | Contact parts in SUS 304 or 316L or equibalent material | |
| Jacket Layer | 3Layer | |
| Water sealed vacuum pump | ||
| Electricity | 380V,50Hz,3 Phase | |
| Power Consumption | 2.35KW | |
